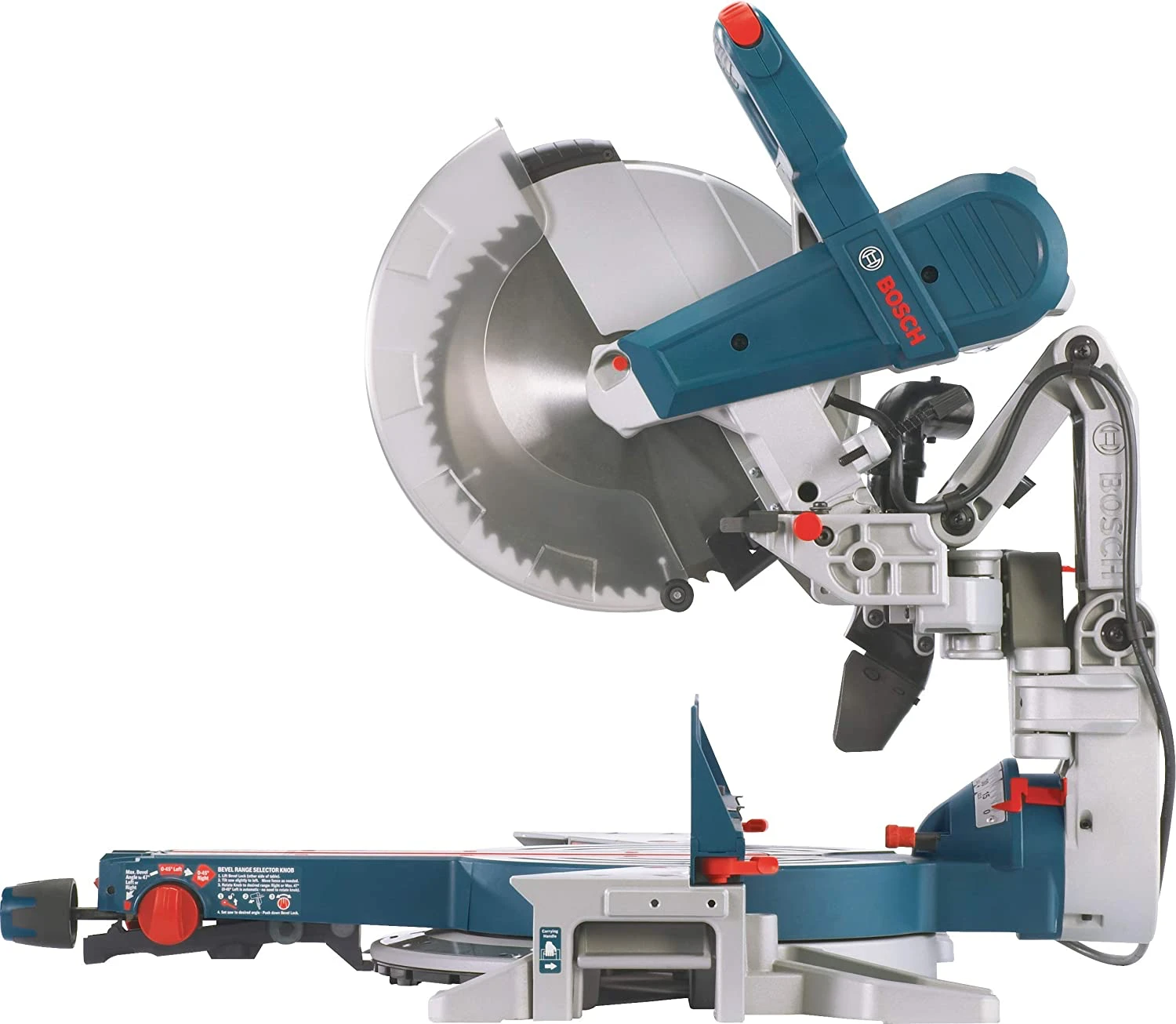

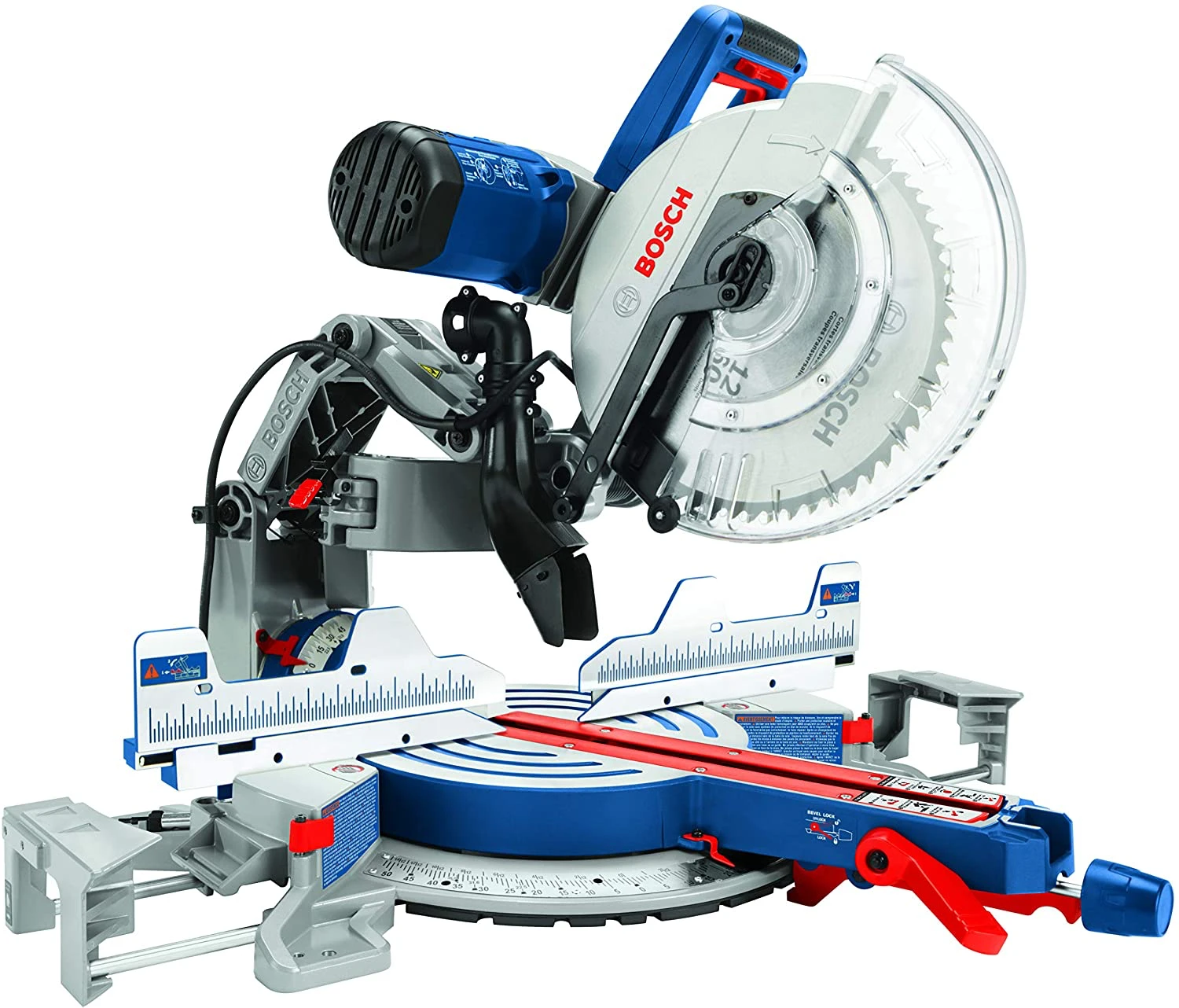

Bosch GCM12SD 12″ Glide Miter Saw

Dual Bevel Miter Saw with Patented Axial-Glide System

Standard Equipment:

• GCM12SD 12″ Miter Saw
• 60-Tooth Blade
• Material Clamp
• Dust Bag

Optional Accessories:

• Miter Saw Blades

Specifications:

• Rating: 120 Volt AC
• Amperage: 15.0
• No-load RPM: 3,800
• Blade Size: 12″
• Bevel Angle Range: 48 Degree L, 48 Degree R
• Miter Angle Range: 52 Degree L, 60 Degree R
• Weight: 65.0 lbs

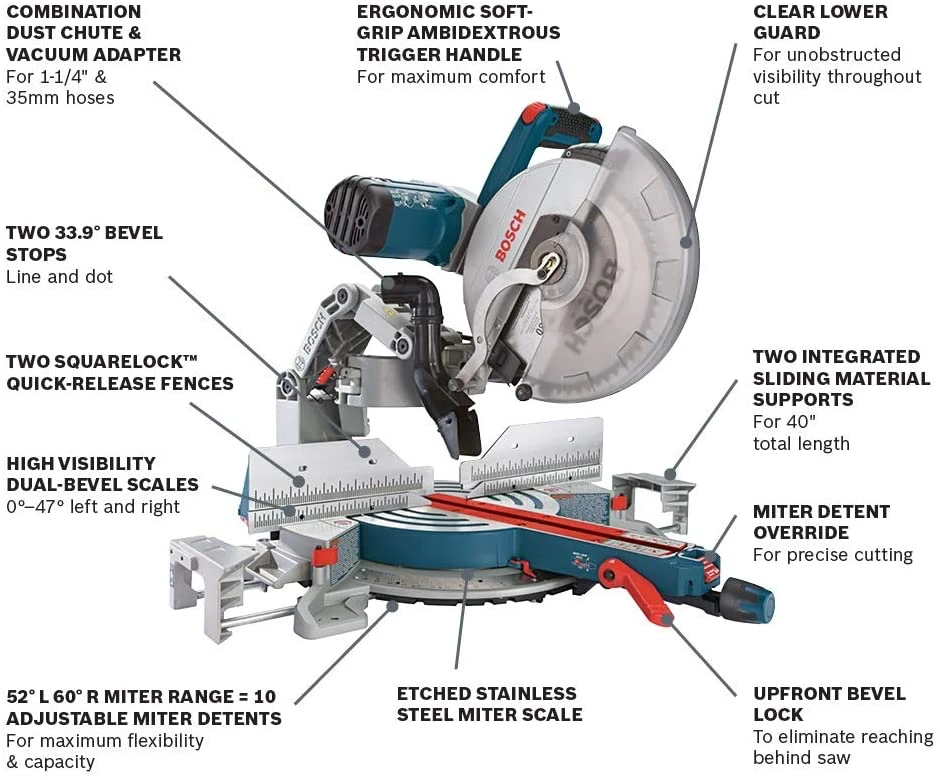

Features:

• Patented Axial-Glide System: Durable Precision – consistent precision over tool life; Compact Workspace – saves up-to 12″ workspace; Glide Action – unmatched smoothness of cut.
• Expanded Cutting Capacity: 14″ horizontal capacity (nominal); 6-1/2″ vertical capacity against the fence (base); 6-1/2″ crown capacity against the fence (45¬∞ spring).
• Upfront Bevel Controls – All-metal bevel lock lever and range selector located Upfront for quick and easy bevel settings without reaching behind the saw.
• Squarelock Quick-Release Fences: High-precision Squarelock fence aligns 90¬∞ to table and requires no adjustment; One-touch lock/unlock to slide fence for added support.
• Integrated Expanding Base Extensions: 60% more left-to-right material support than leading competitor – ; 40-inches left to right.
• Large Easy-to-read Uniform Bevel & Stainless Steel Miter Scales: 52¬∞ Left/60¬∞ Right Miter Capacity; 47¬∞ Left/47¬∞ Right Bevel Capacity with marked detents and roof pitch angles.
• Adjustable Miter Detents: Detents at 0¬∞, 15¬∞, 31.6¬∞, 22.5¬∞, 45¬∞, 60¬∞ Right.
• Super-accurate and durable design.
• Push-button Miter Detent Override – Easy-to-access thumb actuated control right up front for fine miter angle adjustment.
• Bevel Detents: 0, 33.9¬∞, 45¬∞ Left/Right for accurate cuts.
• Category Best 90% Dust Collection – Optimized for cutting 2x material with a vacuum.
• Ergonomic Ambidextrous Trigger Handle with Soft Grip – Large form fitting ergonomic handle provides comfort for all-day use.
