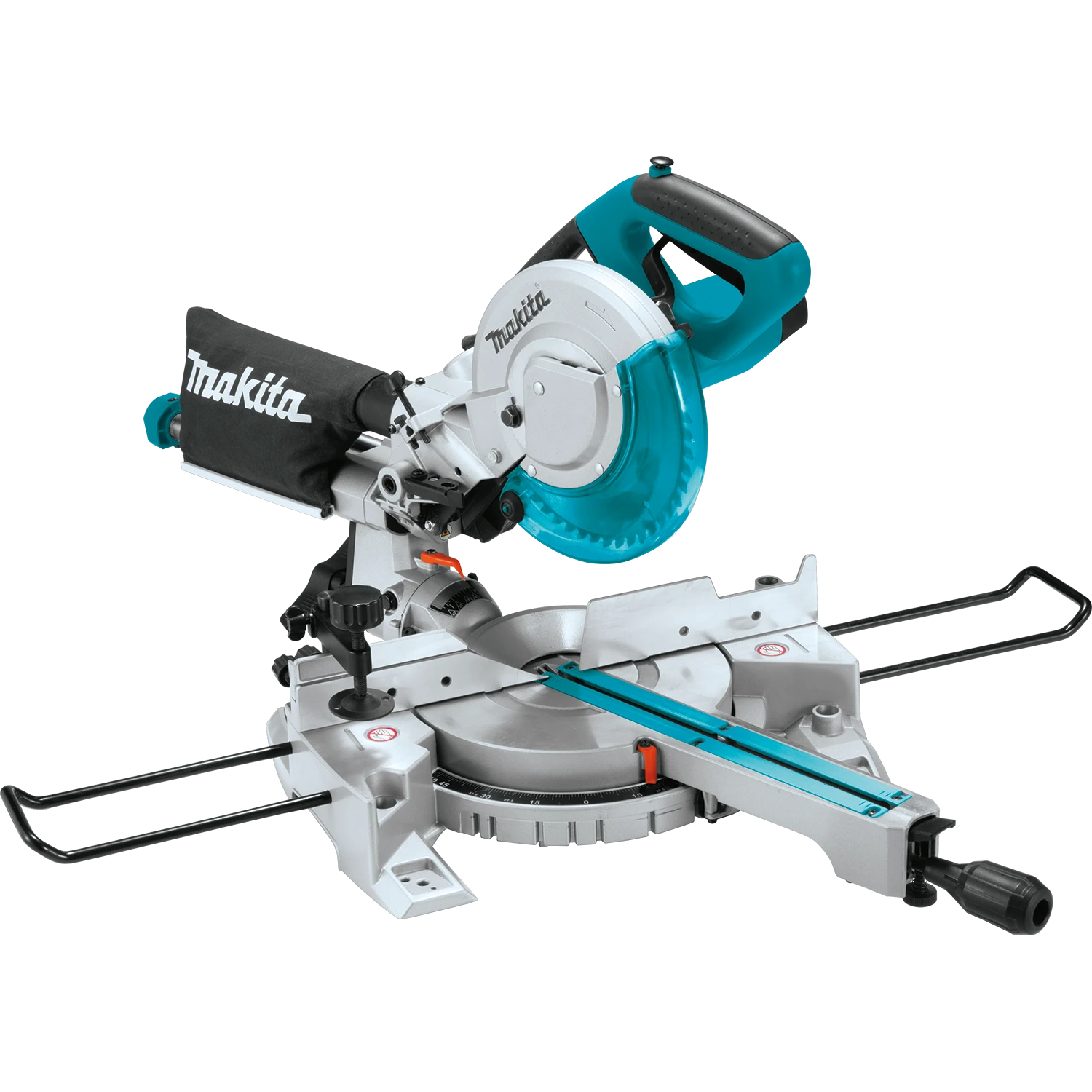

Makita LS0815F 8-1/2″ Slide Compound Miter Saw

The Makita 8-1/2″ Slide Compound Miter Saw (model LS0815F) combines a compact and lightweight design with a powerful direct-drive motor. Portable and powerful, the LS0815F is an ideal cutting solution for applications ranging from woodworking and carpentry to room-to-room applications like finish, trim, and flooring installation.

The LS0815F is powered by a direct drive 10.5 AMP motor with soft start. This is a key point of difference, as users will experience smoother start-ups and constant power with no belts to slip or replace. The electric brake provides added convenience.

The linear ball bearing system is engineered to delivery smooth, ‚Äúdead-on” accurate cuts. At 90° the LS0815F has 12″ crosscutting capacity, with 8-1/2″ capacity at 45° (miter). The saw miters 0° to 50° left and 0 to 60° right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45°, and 50° (left and right), and an additional stop at 60° (right). The dual rear handle bevel lock is easily accessible and adjusts 0°- 48° (left) and 0°- 5° (right) with positive stops at 0° and 45° (left).

The LS0815F weighs only 31.1 lbs. for increased portability. Additional features include a see-through blade guard system for greater visibility of the blade and line-of-cut. The ergonomic rubberized horizontal D-handle design has a better fit and added comfort, and the large trigger switch is designed for easier operation. The LS0815F also includes an L.E.D. light that illuminates the line-of-cut.

The LS0815F is part of Makita’s expanding line-up of best-in-class miter saws that deliver capacity, accuracy, and portability for a range of cutting applications. It is ideal for baseboard and crown molding installation, finish carpentry, cabinet and furniture making, wood floor installation, deck building, general construction, and more.

Standard Equipment:

• (1) 8-1/2″ Slide Compound Miter Saw (LS0815F)
• (1) 8-1/2″ 48T Carbide-Tipped Miter Saw Blade (A-95934)
• (1) Triangle Rule (JM27000328)
• (1) Vertical Vise (JM23510009)
• (1) Dust Bag, LS0815F (JM23510010)
• (1) Box Wrench, LS0815F (782230-2)
• (2) Extension Wing (JM23000127)

Optional Accessories:

• Miter Saw Blades

Specifications:

• Rating: 120 Volts, 10.5 Amps
• Blade Diameter: 8-1/2″
• Arbor: 5/8″
• No Load Speed: 5,000 RPM
• Max Cutting Capacity (miter 90°): 2-9/16″ x 12″
• Max Cutting Capacity (miter 45°, L/R): 2-9/16″ x 8-1/2″
• Dimensions (LxWxH): 29-3/4″ x 17-3/4″ x 19-1/4″
• Net Weight: 31.1 lbs

Features:

• Powerful 10.5 AMP direct drive motor requires less maintenance and delivers 5,000 RPM
• Miters 0°- 50° left and 0°- 60° right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 50° (left and right) plus 60° (right)
• Compact and lightweight (31.1 lbs.) for job site portability
• Cuts up to 12″ at 90° and 8-1/2″ at 45°
• Linear ball bearing system engineered to deliver “dead-on” accurate cuts
• Dual rear handle bevel lock is easily accessible and adjusts 0°- 48° (left) and 0°- 5° (right) with positive stops at 0° and 45° (left)
• Soft start feature for smooth start-ups
• Built-in L.E.D. light illuminates the line of cut for increased accuracy
• Exclusive 2-1/2″ tall fence system for increased vertical cutting capacity
• Ergonomic rubberized D-handle design for better fit and added comfort
• Large precision machined aluminum base supports material for more efficient cutting
• Electric brake for maximum productivity
• See-through blade guard system for greater visibility of the line of cut
• Oversized trigger switch for better fit, added comfort and easier operation
• Connects directly to Makita Xtract Vac (VC4710) for a cleaner work area
• Includes extension wings for supporting long work pieces
• Ideal for baseboard and crown molding installation, finish carpenters, cabinet and furniture makers, wood floor installers, deck builders, general construction and more
