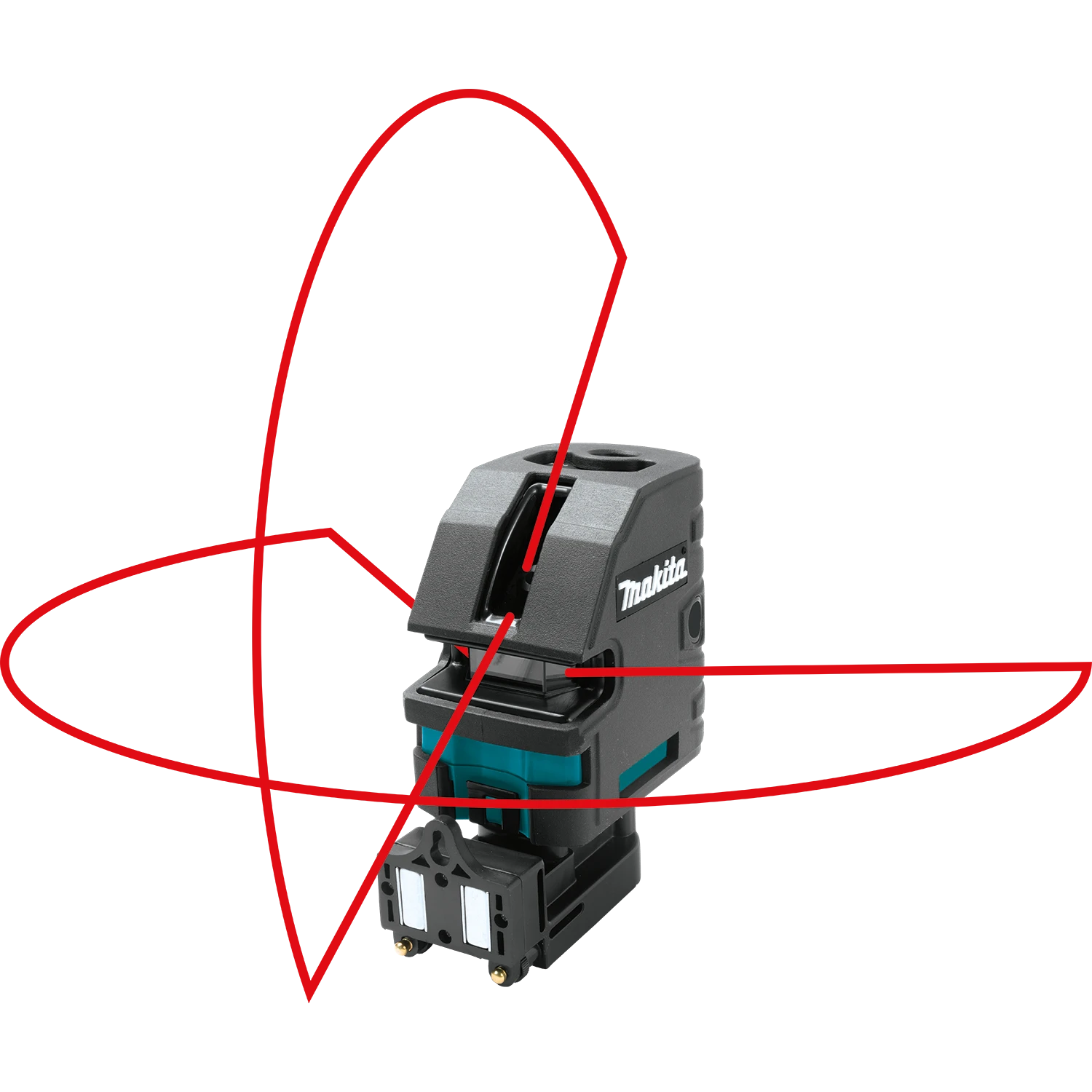

Makita SK104Z Self-Leveling Horizontal/Vertical Cross Line Laser

Lasers are typically utilized in the early stages of construction, and measurement needs will vary based on application requirements. The Makita Self-Leveling Cross-Line Laser (SK104Z) gives the user horizontal and vertical reference lines required in leveling and aligning applications. It has a fast self-leveling time, achieving stability within 3 seconds for increased productivity. For work on uneven surfaces, the self-leveling is correctable to up to 4 degrees of slope. Depending on ambient light in the working environment, the SK104Z has a line visibility range up to 50′.

For added durability, the SK104Z has recessed laser windows that are highly protected from fracture damage and drops, and the full over-sized rubber over-mold provides increased protection. For added convenience, the multi-purpose magnetic bracket allows for attachment to a tripod with a _” or 5/8″ thread, or to metal and wood objects.

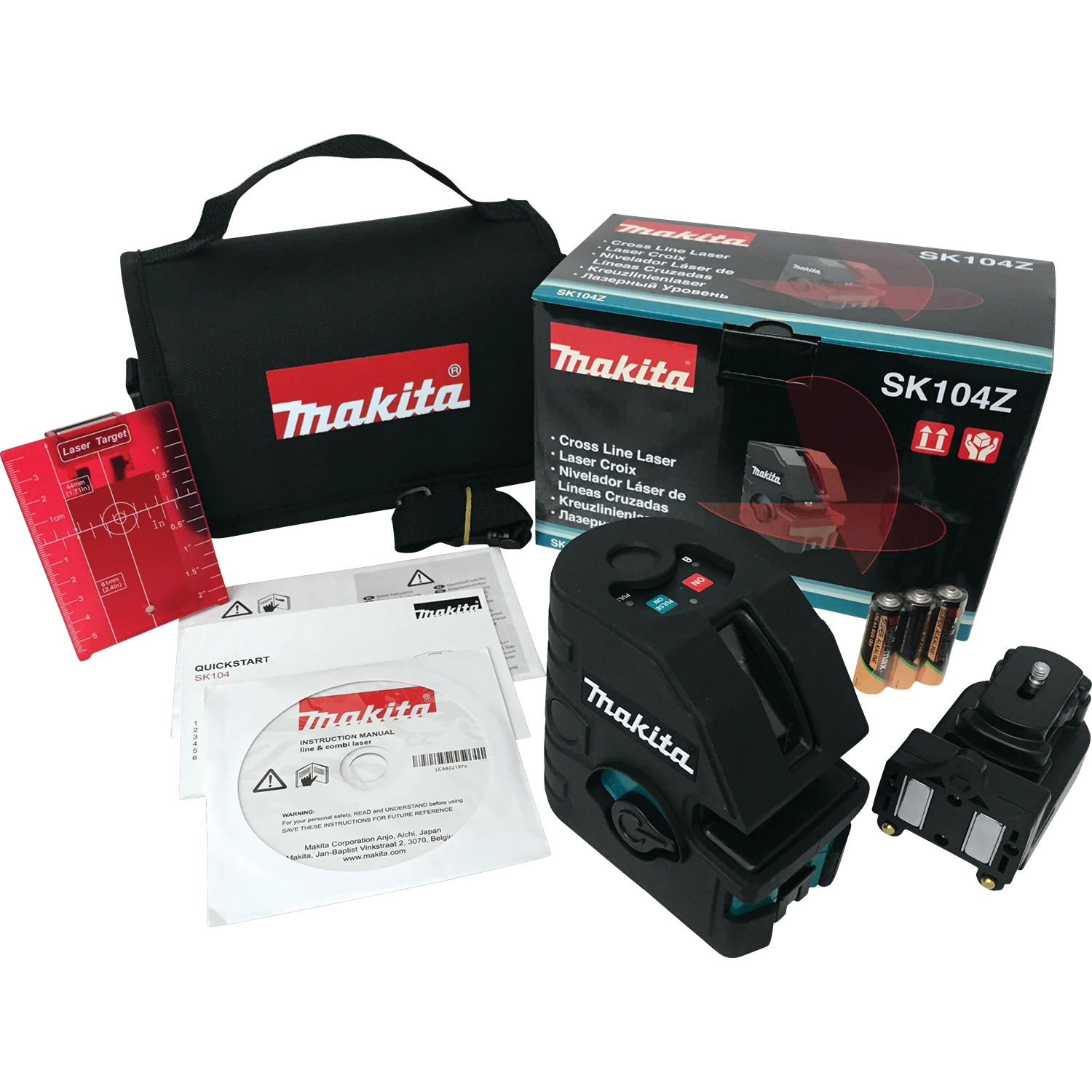

Standard Equipment:

• SK104Z Cross Line Laser Level
• (1) Magnetic Mounting Adapter for Lasers (LE00789389)
• (1) Magnetic Red Target Plate (LE00785638)
• (1) Red Beam Target Card
• (1) Storage Pouch
• (1) Pouch Strap
• (3) AA Batteries

Specifications:

• Accuracy: ±1/8″ @ 33′
• Line Beam Direction: 2 line (horizontal, vertical)
• Working range (line): 50′
• Levelling Range: 4°
• Laser Diode: Class II, 635 nm
• Power Supply: 3 “AA” Batteries
• Weight: 1.04 lbs

Features:

• Line visibility range up to 50′ depending on ambient light in working environment
• Accuracy – horizontal/vertical lines (± 1/8″ @ 30′)
• Fast self-leveling time; stability is achieved in 3 seconds for increased productivity
• Self-leveling is correctable up to 4¼ of slope allowing operation on uneven surfaces
• Bright 635 nm class II laser for best-in-class visibility in moderate ambient light environment
• Laser line fan length spans well past 90¡ position to provide 180¡ horizontal line and 120¡ vertical line for full reference line coverage in demanding applications
• Integrated pendulum lock enables slope incline applications for increased versatility
• Pulse mode conserves and extends battery life for increased operation time in low light environments
• Delivers up to 35 hours of continuous run time operation
• Three independent mode functions conserve power by allowing battery power usage only when needed to operate the necessary functions
• Recessed laser windows are highly protected from fracture damage in slot positions for increased durability
• Full oversized rubber over-mold for increased protection
• Pendulum lock offers added protection of laser diode during transport and storage
• Dust and water resistance with IP 54 rating for increased durability
• Simplified two button user interface for ease of operation
• Multi-purpose magnetic bracket allows for attachment to a tripod with a 1/4″ & 5/8″ thread or to metal and wood objects
