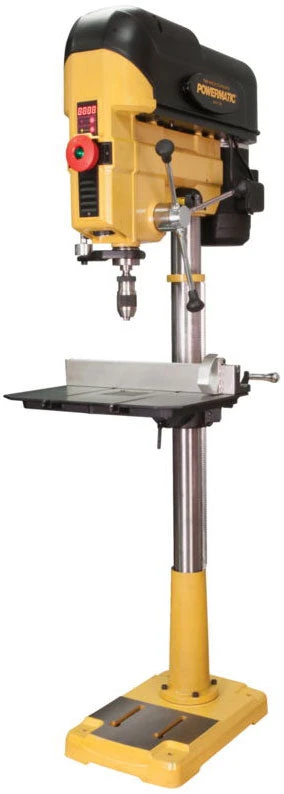

Powermatic 1792800B PM2800B Drill Press

Standard Equipment:

• PM2800B Drill Press – 1792800B

Specifications:

• Swing: 18″
• Spindle Travel: 6″
• Number of Spindle Speeds: Variable
• Spindle Taper: MT-2/JT-3
• Spindle Distance to Table (Max): 27-3/8″
• Spindle Distance to Base: 46-1/4″
• Table Size (L x W): 20 x 14″
• Table Tilt (Deg.): 0 to 90 Degrees
• Fence Size (L x H): 19-13/16″ x 2-11/16″
• Chuck Distance to Base: 43-13/32″
• Chuck Distance to Table: 24-1/2″
• Chuck Size: 5/8″
• Column Diameter: 3-1/8″
• Base Size: 13-3/8″ x 20″
• Motor Power: 1HP
• Motor Phase: 1
• Motor Voltage: 115/230V
• Prewired Voltag: 115V
• Motor Current: 15/7.5A

Features:

• Mechanical variable speed allows for full range of speed with no belt changes.
• 6″ of quill travel with one revolution of the handle.
• Fence system adjustable for a perfect 90 degree relationship to the table, for rapid alignment of stock.
• Adjustable material stop makes repetitive actions accurate and quick.
• A digital RPM readout allows user to optimize the spindle speed to the application.
• Laser guides provide an accurate indication for tool point.
• Keyless chuck makes bit changes easier.
• Reversible handles can be mounted on either side of the machine for more comfortable working of the quill.
• Two independent LED worklights eliminates shadows.
• Work table can be rotated to a full 90 degree position.
• Replaceable square table insert with leveling screws make it flush with the top of the table.
• Oversize cast iron base for added stability.
• Safety key prevents accidental starting.
