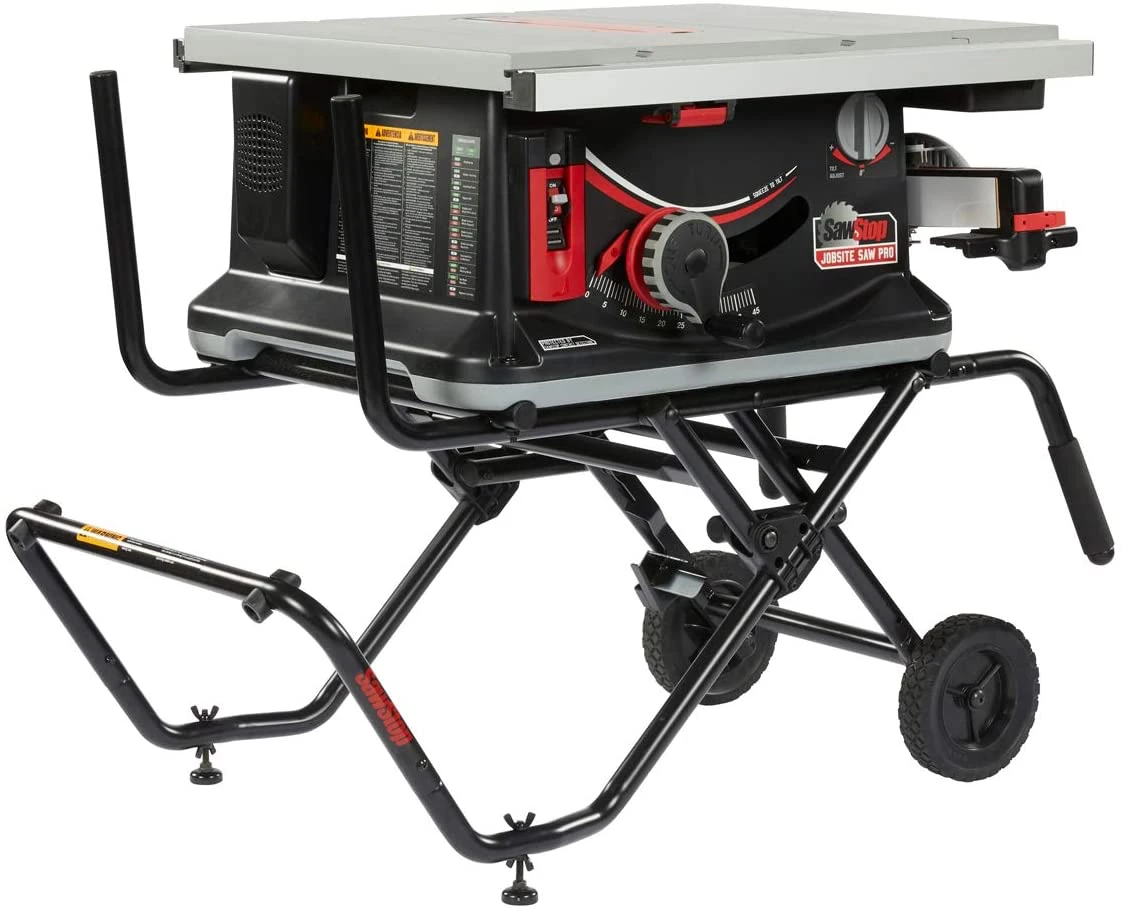

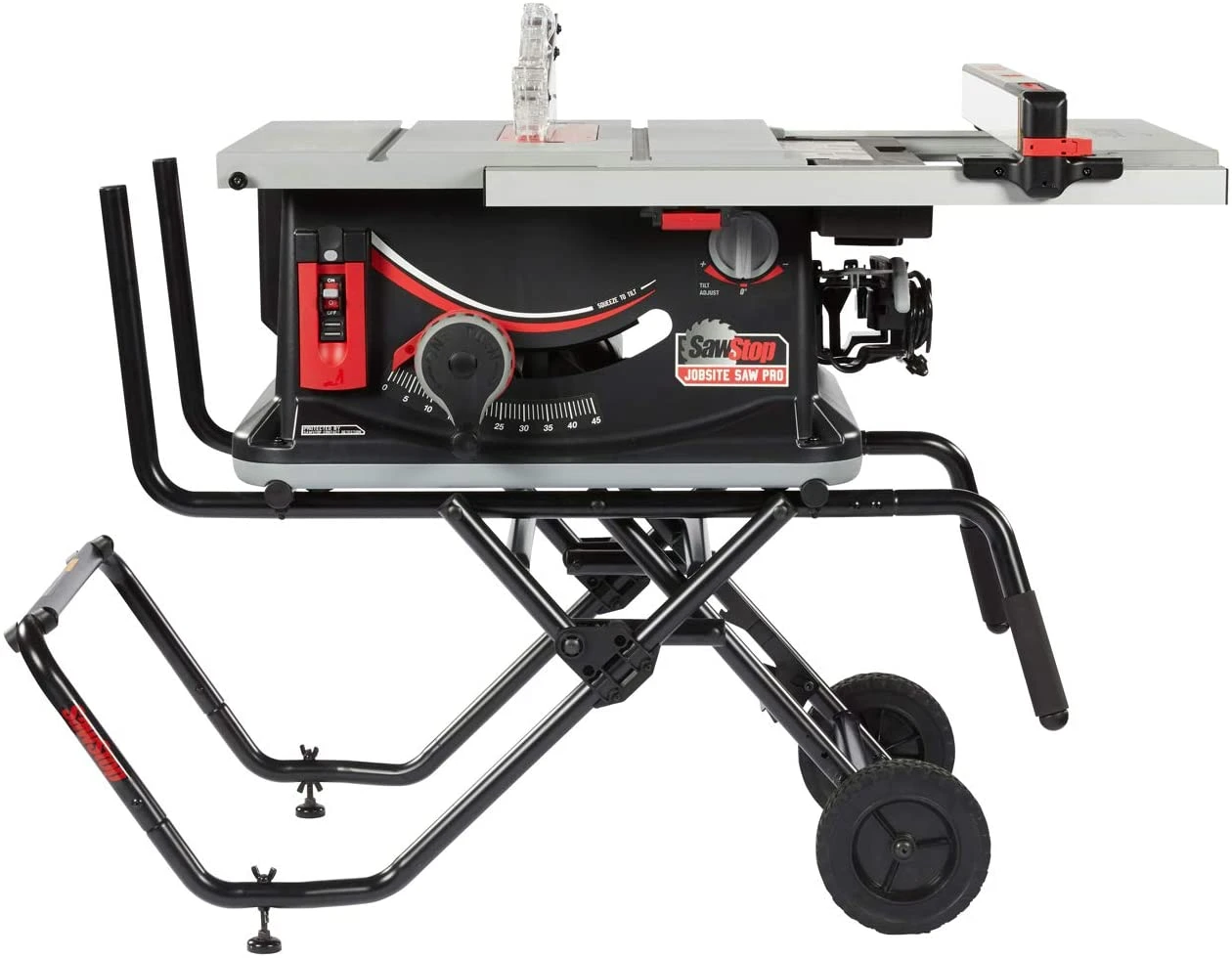

SawStop JSS-120A60 Jobsite Saw Pro With Safety Brake

1.5HP, 120VAC, 60Hz Table Saw with Cart & Fence System

The Jobsite Saw Pro delivers durability, innovation and precision with a design that’s built for the worksite. The Pro model has been upgraded with new features to keep up with the most demanding construction professional. A deeper table, included Active Dust Collection Blade Guard, versatile high-low fence, plus a host of other ways to work faster, smarter and safer at your next jobsite.

Standard Equipment:

• JSS-120A60 Table Saw
• (1) Collapsible Rolling Cart
• (1) High/Low T-Style Fence W/Ergolock
• (1) Miter Gauge
• (1) JSS Active Dust Collection Blade Guard
• (1) Riving Knife
• (2) Blade Wrenches
• (1) Push Stick
• (1) 10″ Blade
• (1) Standard Brake Cartridge
• (1) User’s Guide
• (1) Assembly Instructions Poster
• (1) Hardware Pack
• (1) 3Mm Hex Key
• (1) 4Mm Hex Key
• (1) 5Mm Hex Key

Specifications:

• Motor Configuration: 120 VAC 60 Hz, Universal
• Amperage: 15.0
• No Load RPM: 4,000
• Blade Diameter: 10″
• Dado Diameter: 8″
• Dado Max Width: 13/16″
• Max Depth of Cut @ 0°: 3-1/8″
• Max Depth of Cut @ 45°: 2-1/8″
• Max Rip Right of Blade (extended): 25-1/2″
• Max Rip Left of Blade: 9-3/4″
• Table Dimensions (Retracted): 31-1/4″ W x 24-5/8″ D
• Table Dimensions (Extendedd): 43-3/8″ W x 24-5/8″ D
• Table Saw Weight: 84 lbs
• Weight w/Cart: 113 lbs

Optional Accessories:

• TSBC-10R3 Standard Brake Cartridge
• TSDC-8R2 Dado Brake Cartridge

Features:

• Stowed dimensions: 26 1/2″ L x 29″ W x 45″ H
• Class-leading table Depth: 24-5/8″ table Depth means better accuracy and easier, safer cutting
• One Turn Elevation: Raise and lower the blade in just one turn on the hand wheel

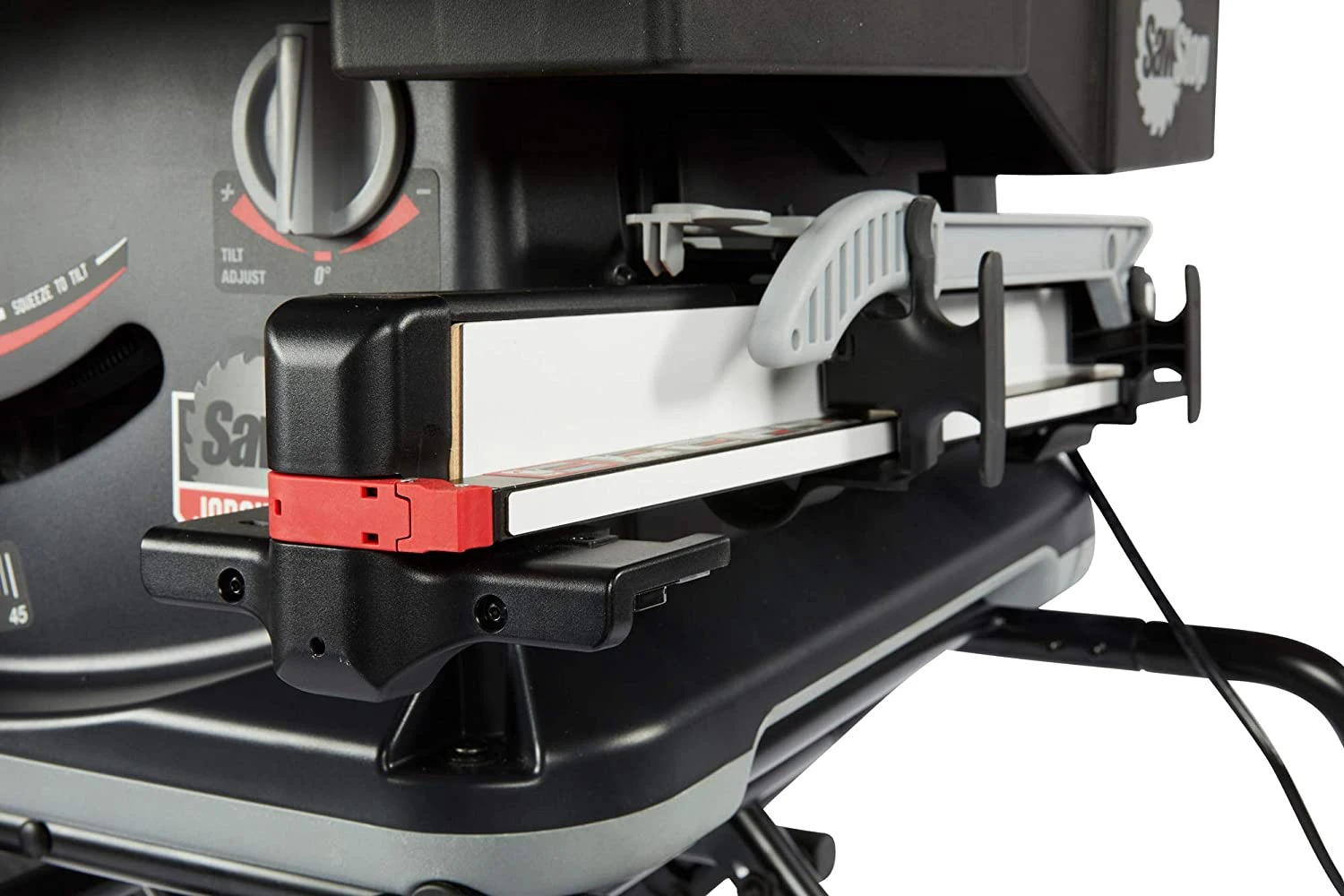

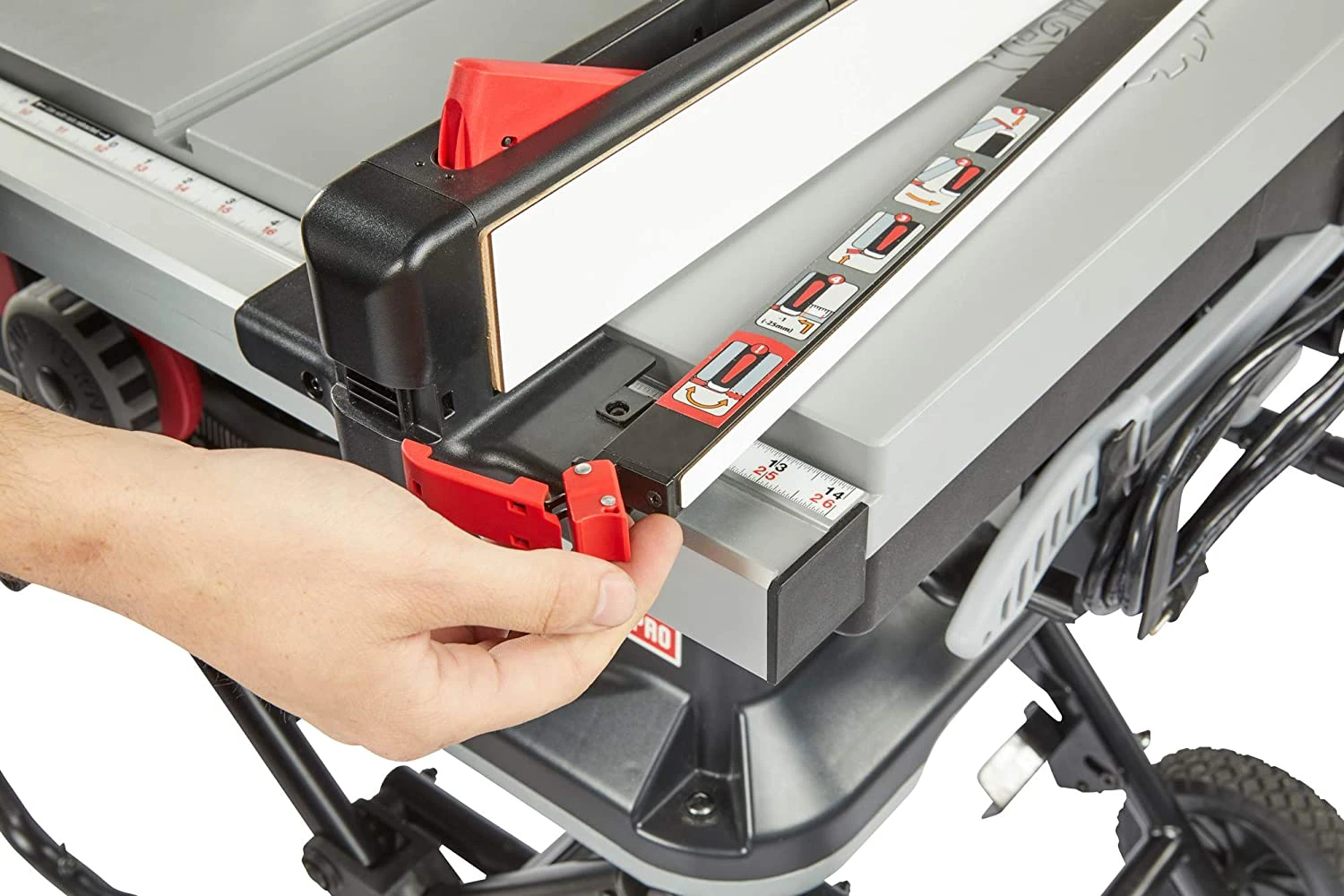

• Solid hi-low T-style fence with Ergo lock: slides easily and locks firm with the push of the innovative Ergo lock. 25-1/2″ rip capacity
• Active dust collection blade guard: captures above table dust, helping to ensure a safer and cleaner workspace

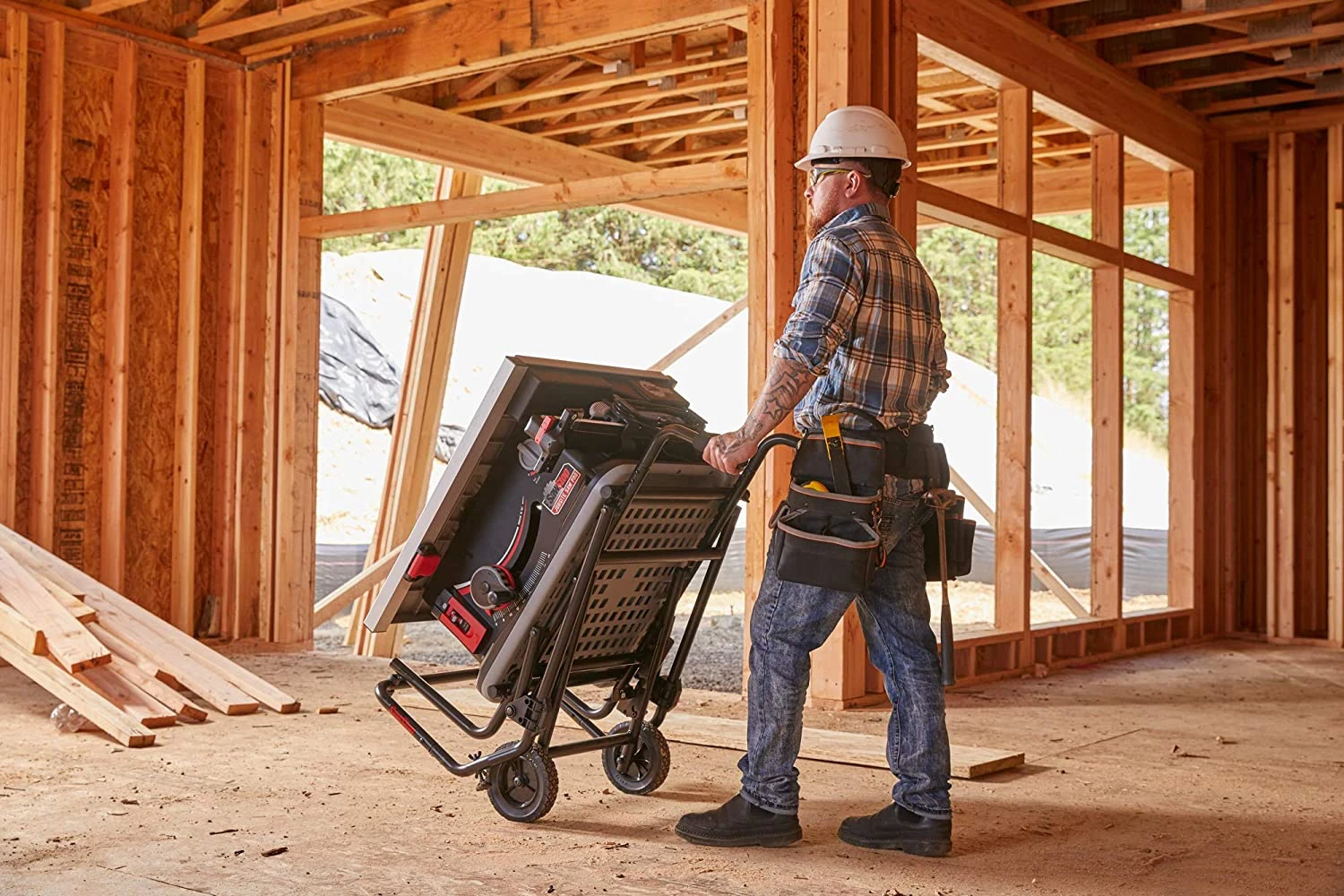

• Easy mobility: simple, intuitive action extends the mobile cart for use and collapse the cart for transport
